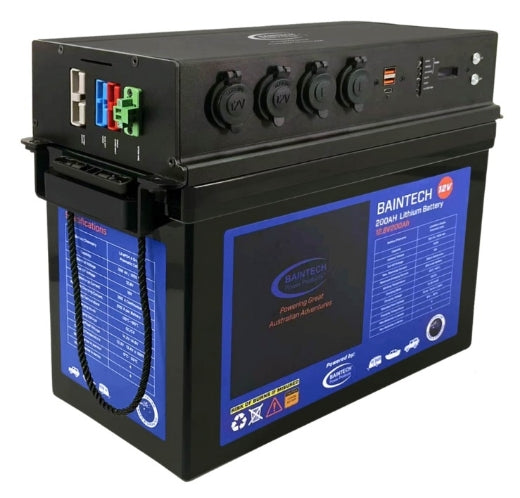

Baintech Lithium Battery With Power Top 12V 200Ah

This POWERTOP BATTERY is designed to deliver reliable power in various applications while offering advanced protection features and communication capabilities for user convenience and safety.

• Weight: 21.5kgs
• Dimensions: 384 x 194 x 333.5
• Terminal Type: M8
• Battery Housing: ABS
• Cell Type-Chemistry: LiFePO4 Cell
• Guaranteed 5-year warranty
• Built-in bluetooth with mobile app
• Nominal Voltage: 12.8V

• Rated Capacity: 200Ah
• Energy: 2560Wh
• Resistance: ≤30mΩ
• Efficiency: ≥98%
• Cycle Life: >3000 cycles @ 1C, 80% DOD
• Self-Discharge: <5% per month
• Cell Configuration: 4S/2P
• Continuous Discharge Current: 200A
• Pulse Discharge Current: 400A (<1S)
• Recommended Voltage Disconnect: 10V
• BMS Discharge Cut-off Voltage: 10V
• Recommended Reconnect Voltage: 10.8V
• Short Circuit Protection: Anderson SOA (blue), Anderson 50A (red), Anderson 120A (grey), CigaSocket (x2), Engle Socket (x1), USB-C (x2), USB-A QC3.0 (x2), USB-C PD3.0
• Wiring Terminal: 2P
• Display: LED Indicators, Display Screen

Temperature Parameters:

• Discharge Temperature: -20°C to 60°C
• Charge Temperature: -10°C to 55°C
• Storage Temperature: -20°C to 60°C
• BMS High Temperature Cut-off: 65°C

Physical Attributes:

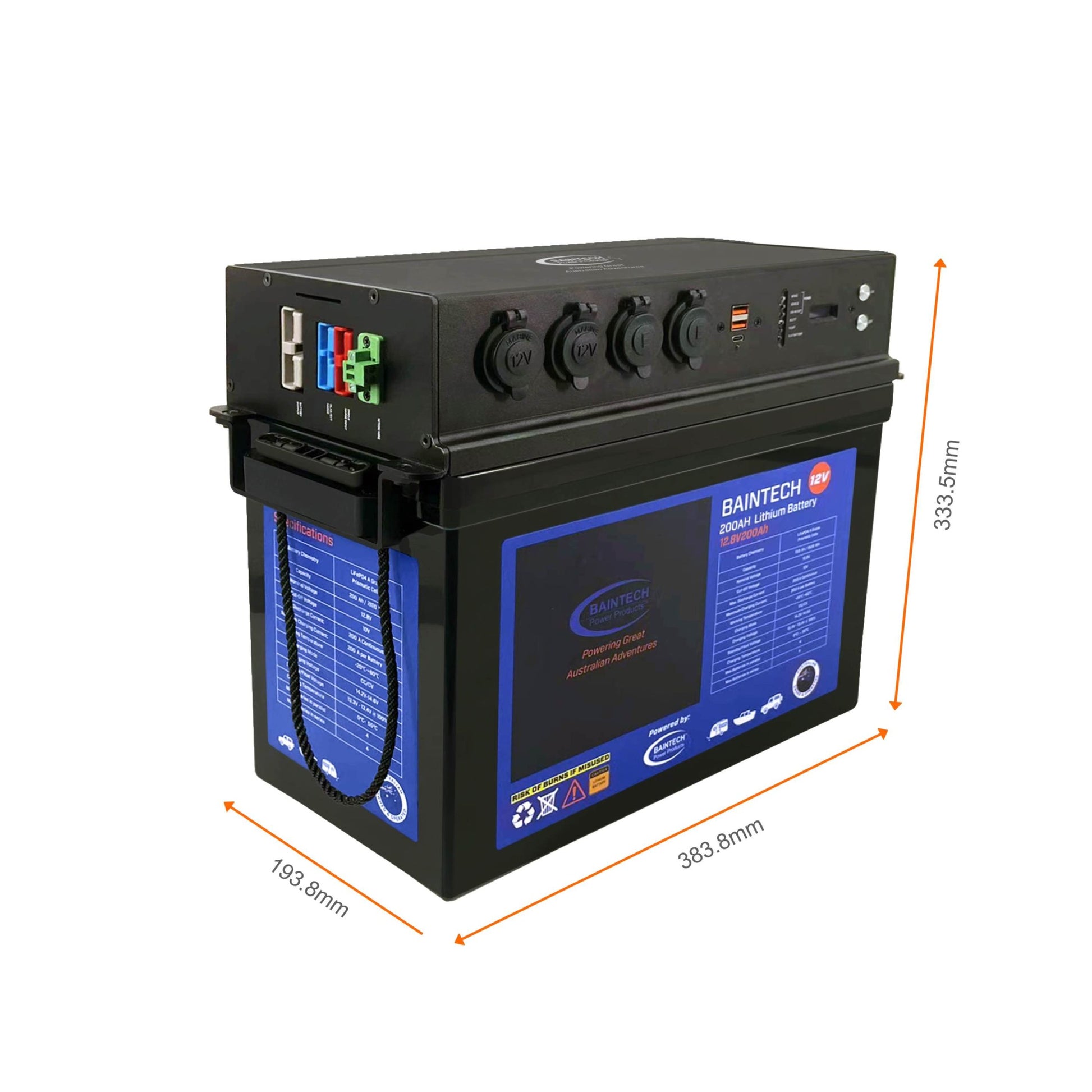

• Dimensions: 384x194x333.5mm / 15.12×7.64×13.13 inches
• Weight: 21.5kg
• Terminal Type: M8
• Battery Housing: ABS
• Housing Protection: IP30

Cell Type:

• Chemistry: LiFePO4 Cell
• Communication Protocol: Bluetooth
• Charge Method: Constant Current-Constant Voltage (CC-CV)

Charge Parameters:

• Charge Voltage: 14.2V – 14.6V
• Recommended Float Voltage: 13.3V – 13.4V @ 100% SOC
• Recommended Charge Current: 100A
• Maximum Charge Current: 200A
• BMS Charge Cut-off Voltage: 14.8V

Compatible Power Sources:

• Alternator: DC 11.5V – DC 16V, Max 40A
• Solar: DC 11.5V – DC 50V, Max 40A

Additional Features:

• Ignition: Fully charged/Solar/Alternator
• Protection Features: Overvoltage, Undervoltage, Overcurrent
• Alarm Information: Voltage, Current, SOC
