Baintech 110AH-Slimline with 30A DC-DC & MPPT chargers Built in
Baintech 110AH-Slimline with 30A DC-DC & MPPT chargers Built in
$1,745.00 AUD
$1,899.00 AUD $1,745.00 AUD

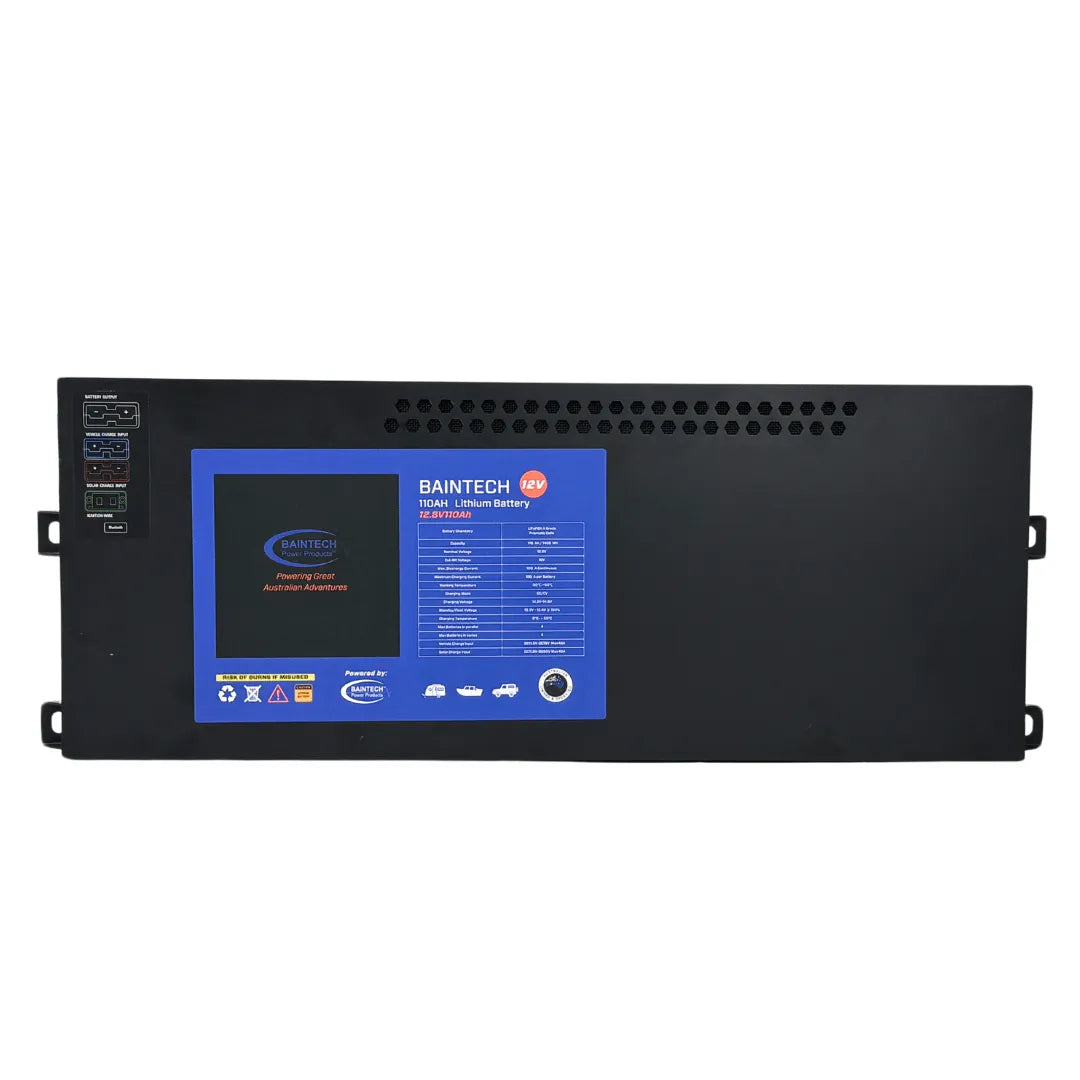

A Baintech 110Ah 12.8V slimline lithium battery with a 30A DC-DC charger, MPPT solar charger and Bluetooth built in.

Highlights

  • Chargers built in. Charge from the alternator (11.5 to 30V) or solar (13.5 to 50V), each up to 30A, with no separate charger to fit.
  • Slim fit. 52mm thick, for tight spaces under seats or behind panels.
  • Long life. Over 4,000 cycles at 100% depth of discharge, keeping more than 80% capacity.

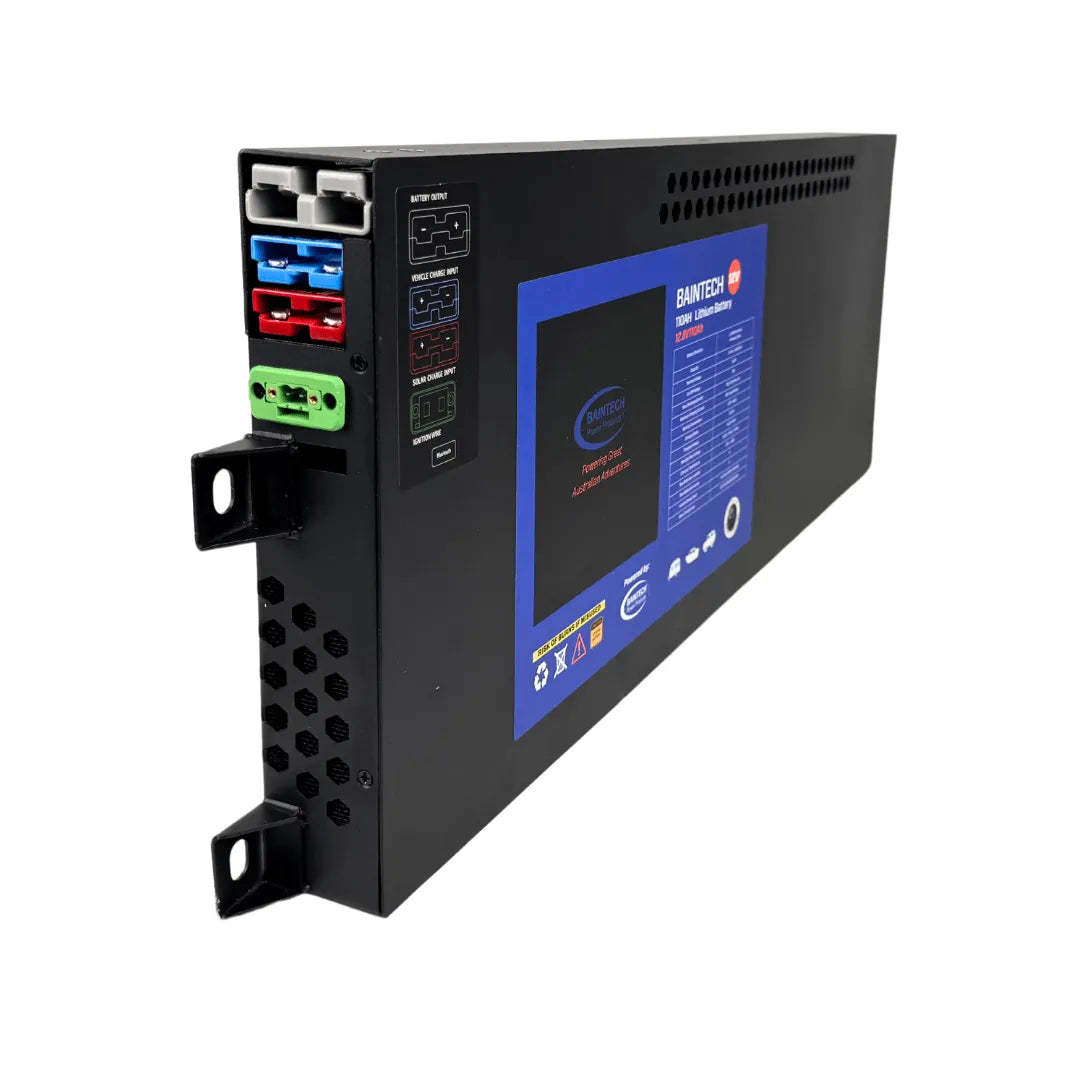

Anderson terminals (120A and 50A) make connection simple.

Not sure what suits your setup? Give us a call on 02 9413 3166 or jump on live chat.

Weight

{"value":17.5,"unit":"kg"}
Dimensions

665mm x 290mm x 52mm
Warranty

5 year manufacturer’s warranty.
Tech Specs

Key features

  • Built in 30A DC-DC charger
  • Built in MPPT solar charger
  • Bluetooth communication
  • Integrated BMS

Specifications

  • Nominal voltage: 12.8V
  • Rated capacity: 110Ah
  • Energy: 1,408Wh
  • Cell chemistry: LiFePO4
  • Built in DC-DC charger: 30A
  • Cycle life: over 4,000 cycles at 100% DOD (over 80% capacity remaining)
  • Continuous discharge: 100A
  • Pulse discharge: 300A (under 1 second)
  • Recommended charge current: 55A
  • Maximum charge current: 100A
  • Charge voltage: 14.2 to 14.6V
  • Alternator/DC-DC input: 11.5 to 30V DC, max 30A
  • Solar input: 13.5 to 50V DC, max 30A
  • Terminals: 120A Anderson and 50A Anderson
  • Housing: SPCC, IP20
  • Discharge temperature: -20°C to 60°C
  • Charge temperature: 0°C to 55°C
  • BMS high temperature cut off: 65°C
  • Dimensions: 665 x 290 x 52mm
  • Weight: 17.5kg
Battery-features
  • Battery life indicator
  • Overcharge protection
  • High cycle life
Battery-technology
  • Lithium
Battery-type
  • Rechargeable
Color-pattern
  • Black
Product-certifications-standards
  • CE certified
  • Restriction of hazardous substances (RoHS) compliant
