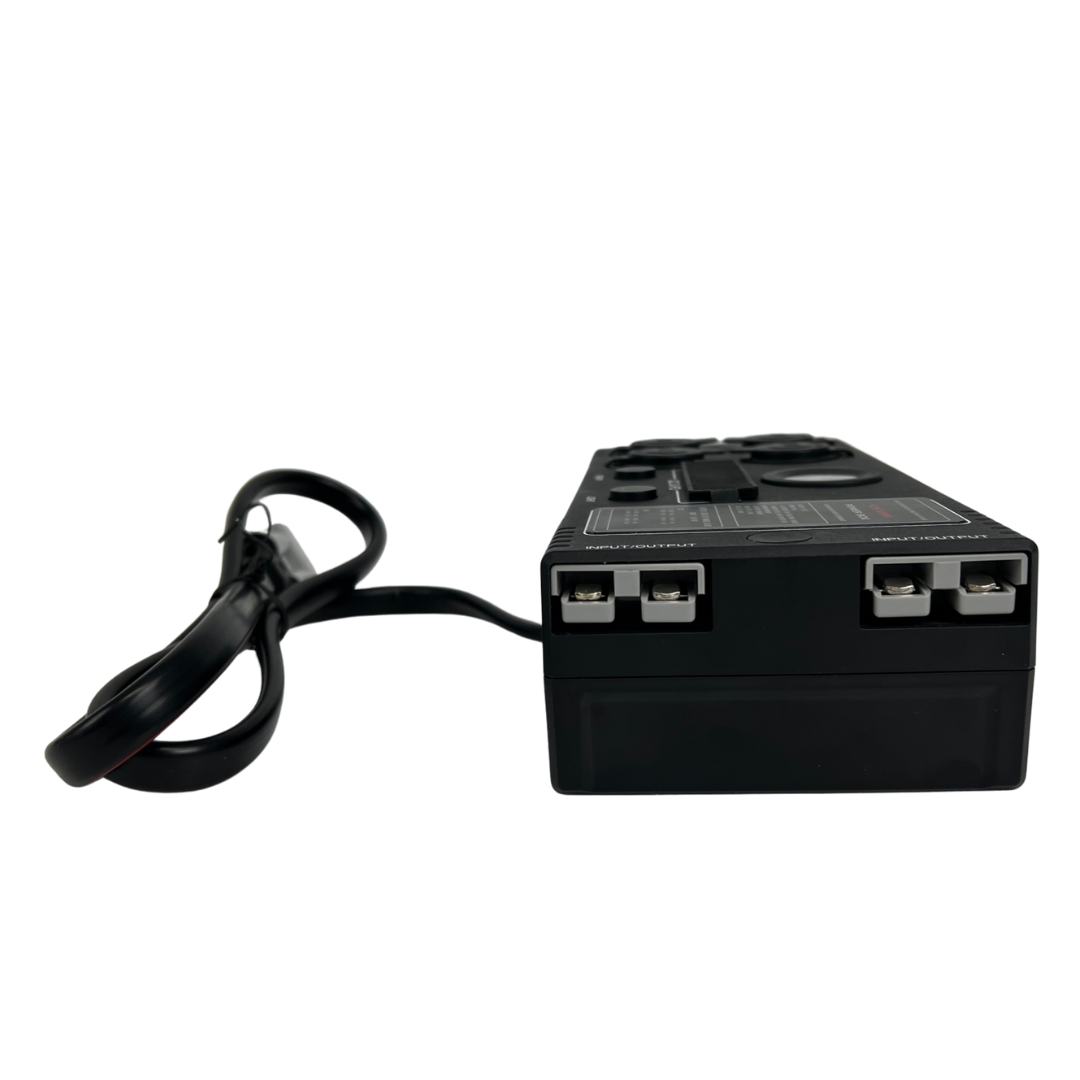

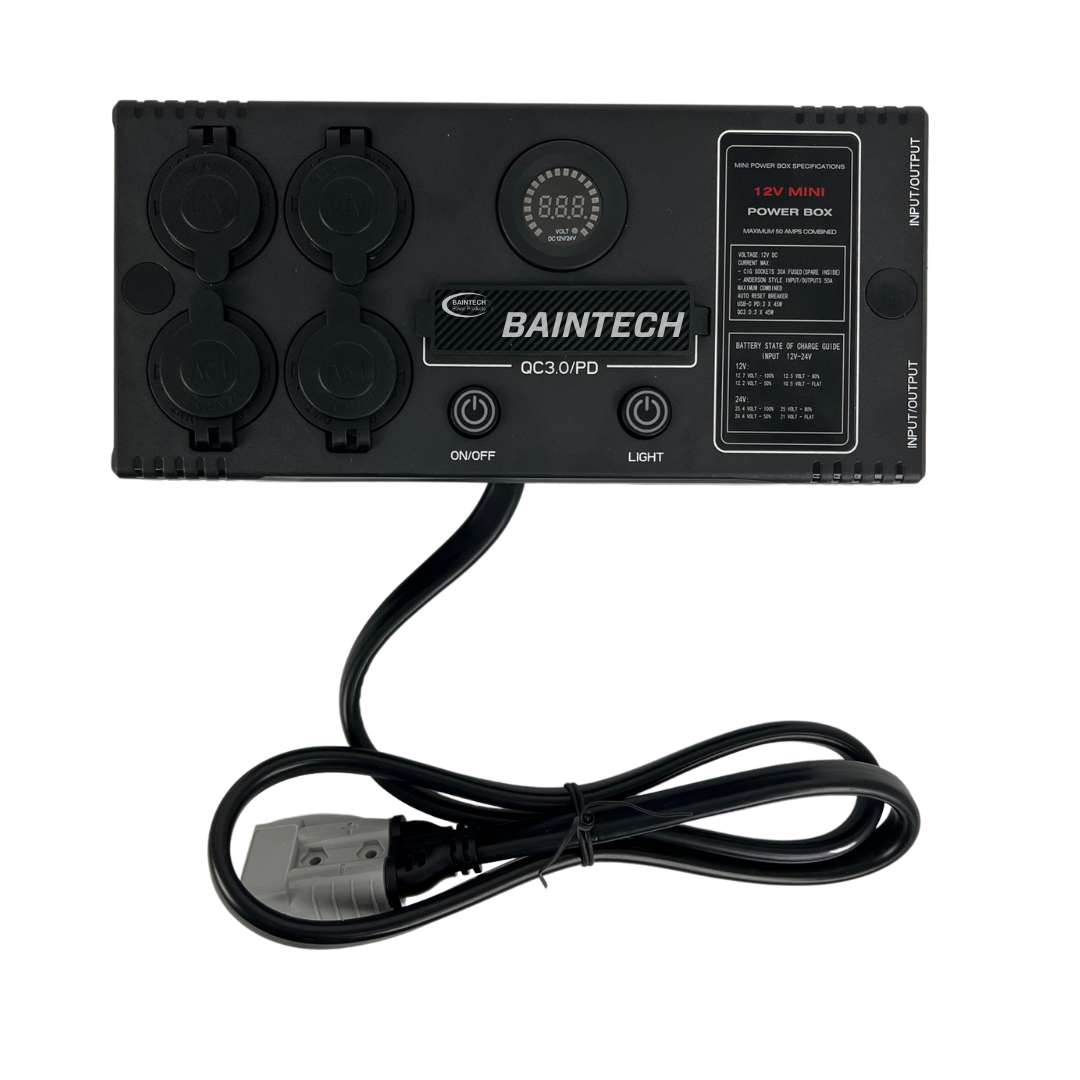

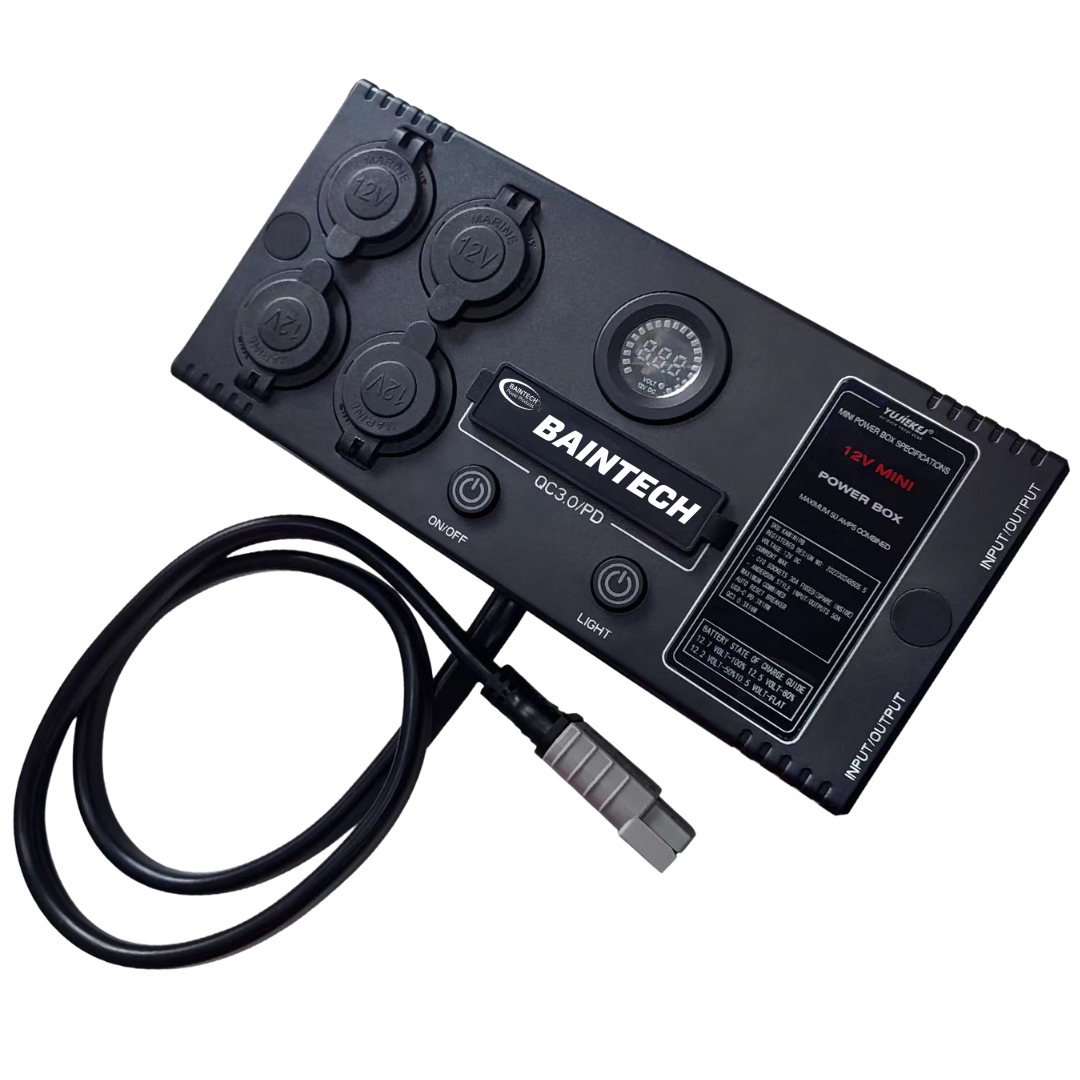

12V Mini Power Box

The Mini Power Box may be used free standing for portable use. If however you want it permanently mounted follow the steps below :

a) Ensure the installation area is a flat surface and

accessibility to the unit is not obstructed.

b) Ensuring the unit is level use the screws provided to secure. We recommend predrilling the mounted

surface first and fastening the screws by hand screwdriver only. Do not over tighten the mounting

screws.

c) Connect the 12 Volt supply via the input Anderson style connector. This is either a permanent supply from a battery, or it could also be from and Anderson extension cable from a portable battery box when using the unit for portable use. The unit is now ready for use.

Specifications:

L24CM X W11.5CM X D6.2CM

• VOLTAGE: 12 Volt DC
• CURRENT MAX:
• – CIG SOCKETS 10A FUSED (SPARE INSIDE)
• – ANDERSON STYLE INPUT/OUTPUTS 50A
• TOTAL AUTO RESET BREAKER
• USB-C PD: 3 X 45W
• OC 3.0: 3 X 45W
• BATTERY STATE OF CHARGE GUIDE
• 12.7 VOLT – 100%
• 12.5 VOLT – 80%
• 12.2 VOLT 50%
• 10.5 VOLT – FLAT
• INPUT CONNECTION
• 50AMP ANDERSON CONNECTOR
• 1M 8B&S CABLE
